Description

381463756

• Product
• Product Instructions

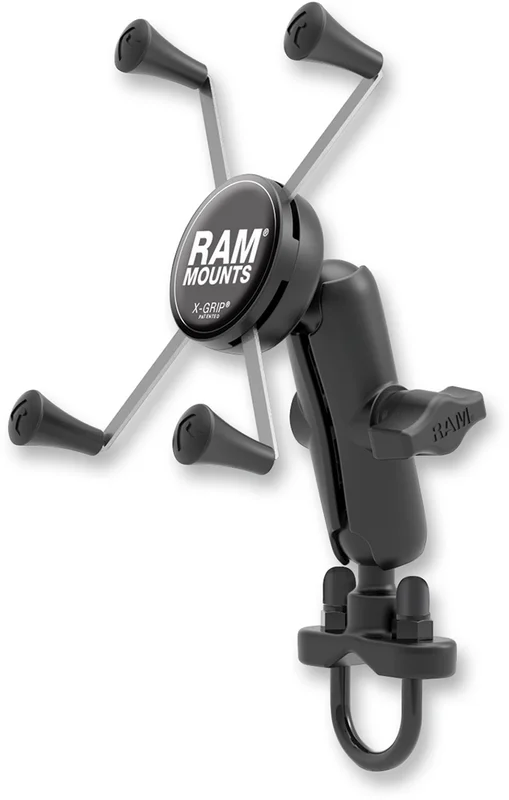

• • Consists of a zinc-coated U-bolt base, double socket arm and universal spring-loaded X-Grip® IV cradle for large phones and phablets
  • Package includes hardware that will accommodate rails from 1/2″ to 1-1/4″ in diameter
  • Base comes with black cover caps to place over exposed ends of the U-bolt
  • Included composite rail adapter narrows the rail to a minimum width of 1/2″
  • Mount is designed with a RAM B-sized 1″ diameter patented rubber ball and socket system that features adjustment points at both ends of the double socket arm; allows for almost infinite adjustment and perfect viewing angles
  • Spring-loaded X-Grip® IV cradle expands and contracts, allowing for a perfect custom fit of phone or phablet
  • X-Grip® also includes a device tether recommended for outdoor applications
  • Cradle is compatible with handheld devices that will fit the following dimensions: minimum width of 1-3/4″ with a minimum height of 5-1/2″; maximum width of 4-1/2″ with a minimum height of 3-1/4″; depth of 7/8″
  • U-Bolt dimensions: 1/2″ to 1-1/4″

  Notes

  • It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

• Product Instructions
