Feuling 7075

Oil is the Life Blood of your Engine!
FEULING oiling system kits combine all the needed components to finish your TC engines oiling system under 1 Part #, available in HP+ or RACE SERIES kits. FEULING oiling system kits increase oil pressure, oil volume, engine oil flow and return oil scavenging, eliminating wet sumping and oily air cleaners. Test results show 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure and quieter smoother engine operation. Results also show a substantial increase of oil pressure and 3 H.P. and 4 Ft. Lbs of T.Q to the rear wheel.

-Both HP+ and RACE SERIES kits include FEULINGS HIGH FLOW billet anodized camplate made from 7075 aluminum which is 50% harder and stronger than the factory, SE and other aftermarket camplates. FEULING increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the camplate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings.

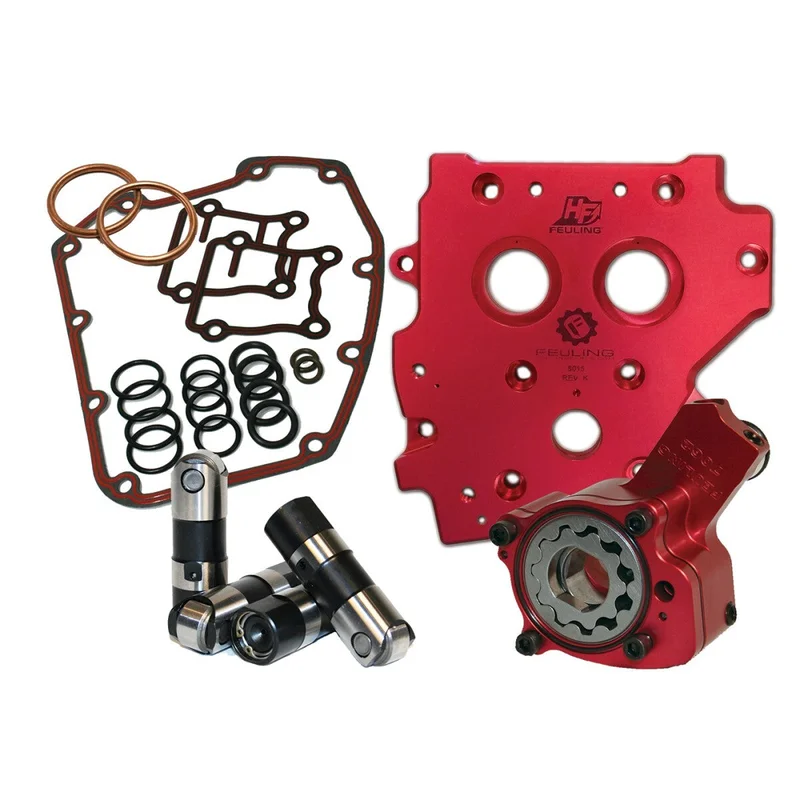

-HP+ SERIES Kits include a billet 6061 aluminum high volume oil pump, FEULING HIGH FLOW camplate, HP+ Hydraulic roller lifters, gaskets and O-ring kit.

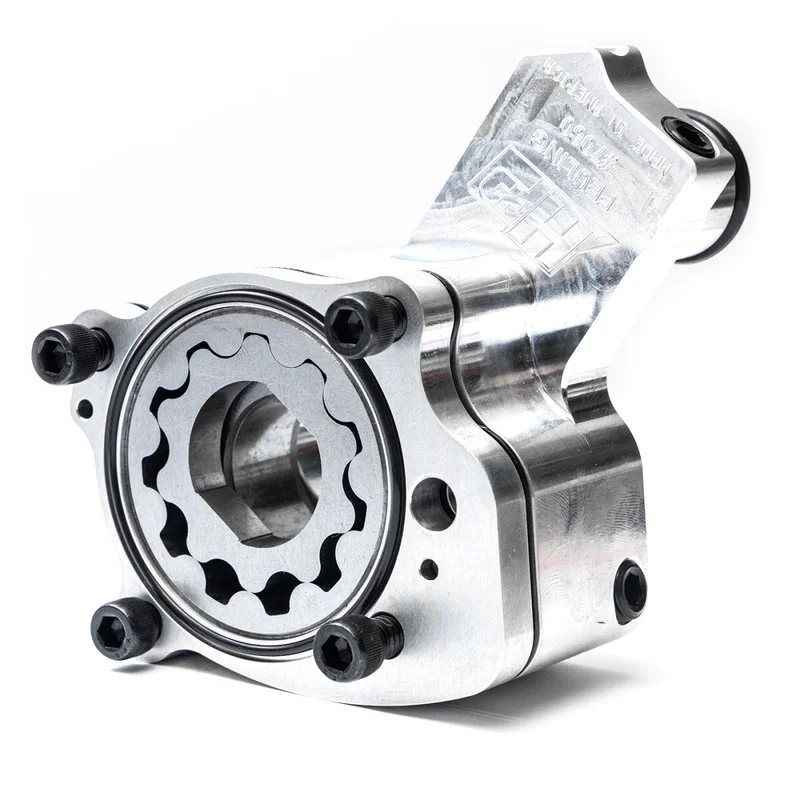

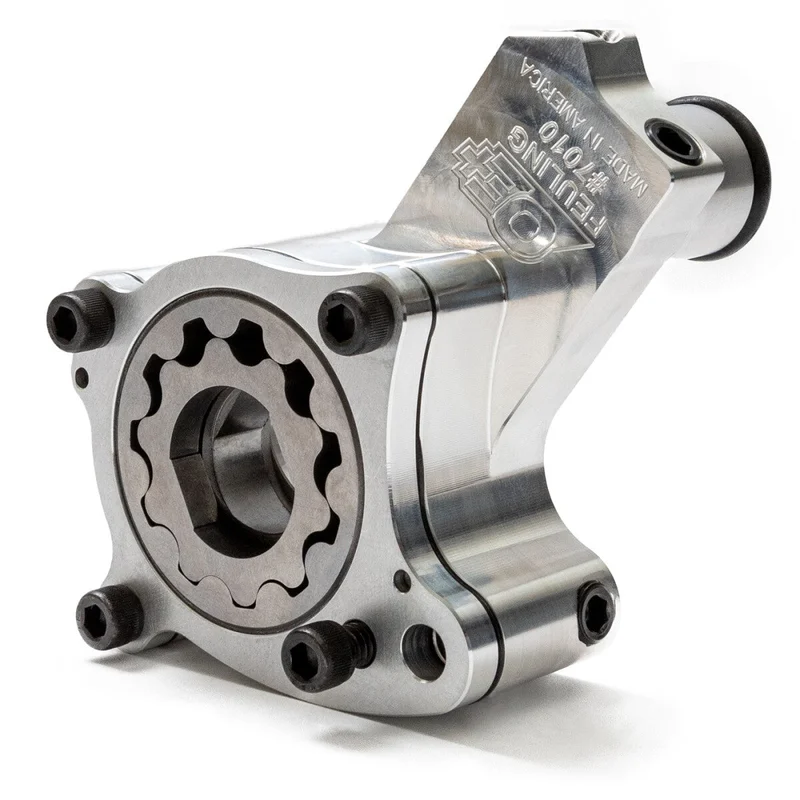

-RACE SERIES Kits include a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature. RACE SERIES hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts. Kits include a RACE SERIES oil pump, RACE SERIES lifters, HIGH FLOW camplate, gaskets and O-rings.

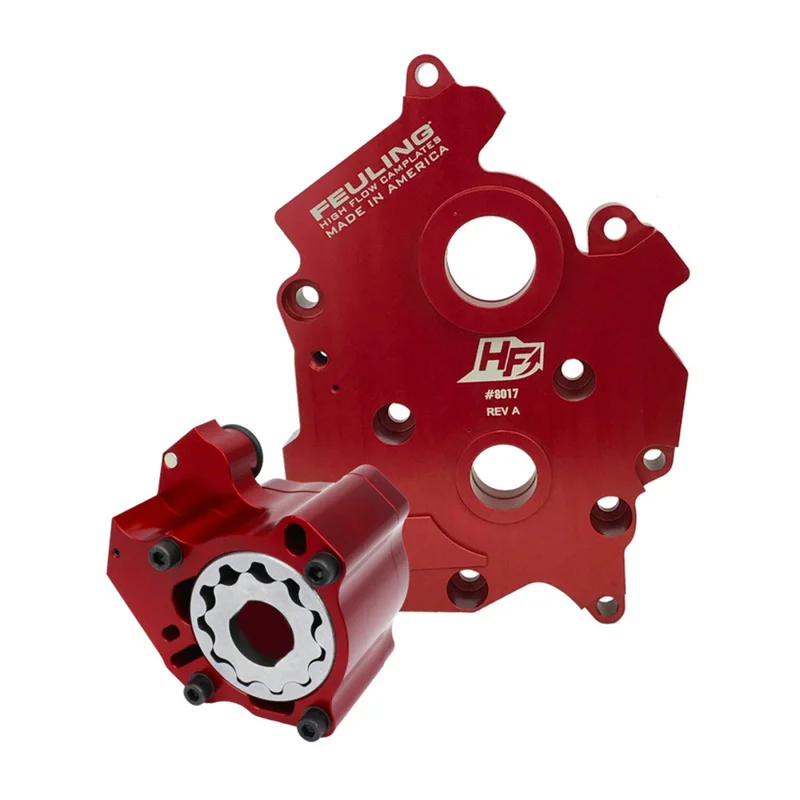

CONVERSION CAMPLATE Kits #7076 & #7077 utilize the early style 99-06 camshafts and upgrade the cam chain system to use the late style 07-17 hydraulic tensioner system. Factory sprockets, tensioners, chain and hardware purchased separately.

#7075 07-12 + 06 Dyna Models Race Series – Gear & Chain (Part #s: 2050, 4017, 7062, 8015)
Gear drive cams require block off plates see Feuling #8016

FITS:

TC 07-17 Including 06 Dyna, Gear or Chain Drive, Includes Gasket kit #2050, RACE SERIES Lifters #4017, RACE SERIES Oil Pump #7062 & anodized Camplate #8015. Gear drive requires block off plates part #8016

COUNTRY OF ORIGIN:

USA

KIT SKU’S:

2050, 4017, 7062, 8015

Make	Model	Year
Harley-Davidson	Blackline FXS	2011 – 2013
Harley-Davidson	Breakout FXSB	2013 – 2017
Harley-Davidson	Electra Glide Classic EFI FLHTCI	2007 – 2013
Harley-Davidson	Electra Glide Standard EFI FLHTI	2007 – 2009
Harley-Davidson	Electra Glide Ultra Classic EFI FLHTCUI	2007 – 2016
Harley-Davidson	Electra Glide Ultra Classic Low FLHTCUL	2015 – 2016
Harley-Davidson	Electra Glide Ultra Limited FLHTK	2010 – 2016
Harley-Davidson	Electra Glide Ultra Limited Low FLHTKL	2015 – 2016
Harley-Davidson	Fat Bob FXDF	2008 – 2017
Harley-Davidson	Fat Boy Lo FLSTFB	2010 – 2016
Harley-Davidson	Fat Boy S FLSTFBS	2016 – 2017
Harley-Davidson	Freewheeler FLRT	2015 – 2016
Harley-Davidson	Low Rider EFI FXDL	2007 – 2017
Harley-Davidson	Low Rider S FXDLS	2016 – 2017
Harley-Davidson	Road Glide Custom FLTRX	2010 – 2016
Harley-Davidson	Road Glide EFI FLTR	2007 – 2009
Harley-Davidson	Road Glide Special FLTRXS	2015 – 2016
Harley-Davidson	Road Glide Ultra FLTRU	2011 – 2016
Harley-Davidson	Road King Classic EFI FLHRC	2007 – 2013
Harley-Davidson	Road King Custom EFI FLHRS	2007
Harley-Davidson	Road King EFI FLHR	2007 – 2016
Harley-Davidson	Softail Cross Bones FLSTSB	2008 – 2011
Harley-Davidson	Softail Custom EFI FXSTC	2007 – 2010
Harley-Davidson	Softail Deluxe EFI FLSTNI	2007 – 2017
Harley-Davidson	Softail Deuce EFI FXSTDI	2007
Harley-Davidson	Softail Fat Boy EFI FLSTFI	2007 – 2017
Harley-Davidson	Softail Heritage Classic EFI FLSTCI	2007 – 2017
Harley-Davidson	Softail Night Train EFI FXSTBI	2007 – 2009
Harley-Davidson	Softail Rocker C FXCWC	2008 – 2011
Harley-Davidson	Softail Rocker FXCW	2008 – 2009
Harley-Davidson	Softail Slim FLS	2012 – 2017
Harley-Davidson	Softail Slim S FLSS	2016 – 2017
Harley-Davidson	Softail Springer Classic EFI FLSTSCI	2007
Harley-Davidson	Softail Standard EFI FXSTI	2007
Harley-Davidson	Street Bob FXDB	2006 – 2017
Harley-Davidson	Street Glide EFI FLHX	2007 – 2016
Harley-Davidson	Street Glide Special FLHXS	2014 – 2016
Harley-Davidson	Street Glide Trike FLHXXX	2010 – 2011
Harley-Davidson	Super Glide Custom EFI FXDCI	2006 – 2014
Harley-Davidson	Super Glide EFI FXDI	2006 – 2010
Harley-Davidson	Switchback FLD	2012 – 2016
Harley-Davidson	Tri Glide Ultra Classic FLHTCUTG	2009 – 2016
Harley-Davidson	Wide Glide EFI FXDWGI	2006 – 2017

FITMENT DISCLAIMER

Fitment information is provided as a general reference only and is not guaranteed for any motorcycle, whether stock or modified. Compatibility may vary by year, model, and individual configuration.

Customers are responsible for verifying fitment prior to purchase. House of Harley-Davidson assumes no liability for purchases made based on incorrect or unverified fitment information.

Please contact our Parts Department with any questions before ordering at 414-282-2211
